01
8 Steel™
ASKO's 8 Steel™ construction uses high-quality stainless steel in eight key dishwasher components for durability, hygiene and long-lasting performance.

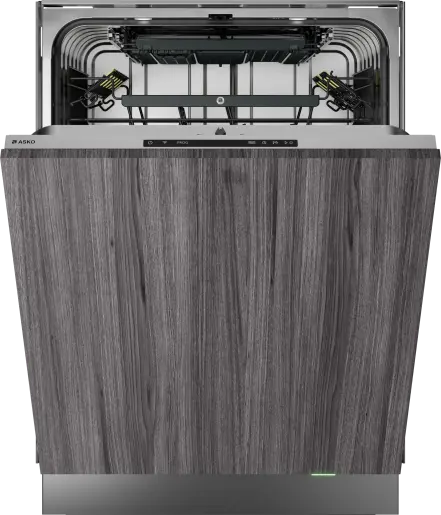

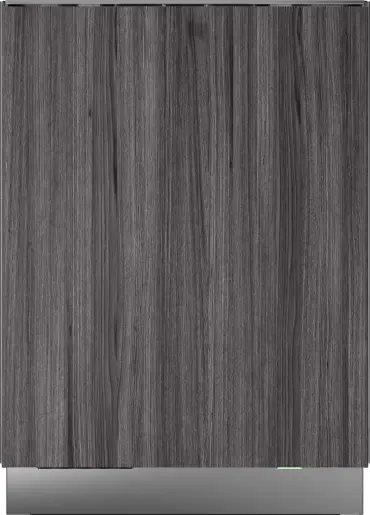

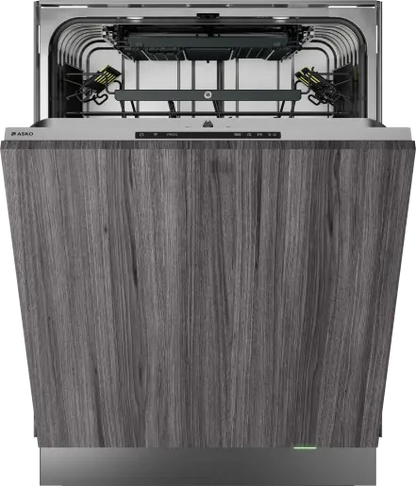

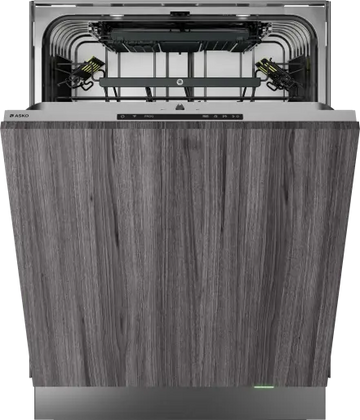

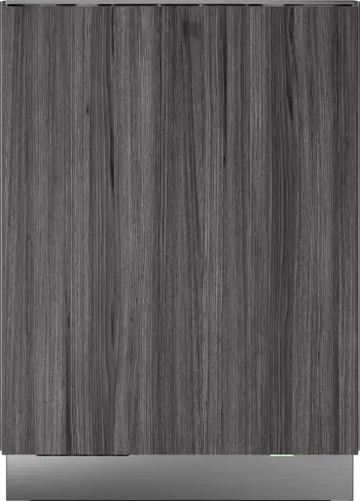

Panel-Ready Dishwasher
DFI564XXL
40 Series

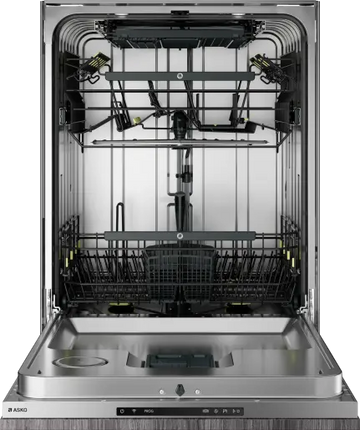

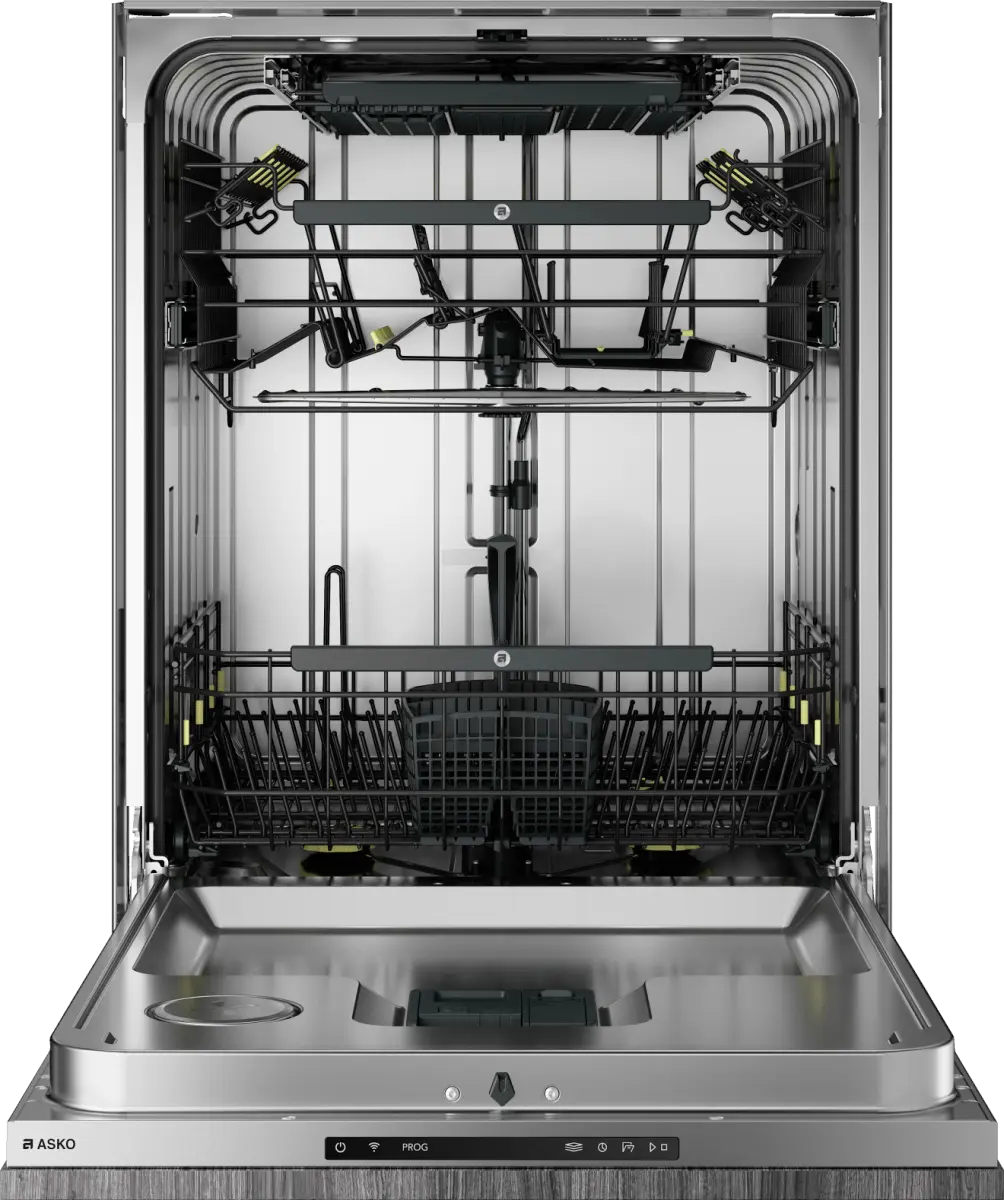

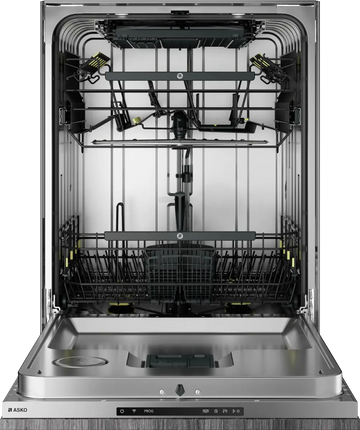

Premium ASKO 40 Series XXL panel-ready dishwasher with 16-place-setting capacity, flexible three-level loading, 8 Steel™ construction, Super Cleaning System™ and quiet 42 dB operation. Designed for seamless integration with custom kitchen cabinetry.
$1,599.00
Optional services
Select only the services you need.
DFI564XXL$1,599.00
Total$1,599.00
ASKO · MAIN FEATURES
02
Status Light™
A discreet indicator light projects onto the floor to show the dishwasher's current status, so you can see when a program is running or complete without opening the door.
03

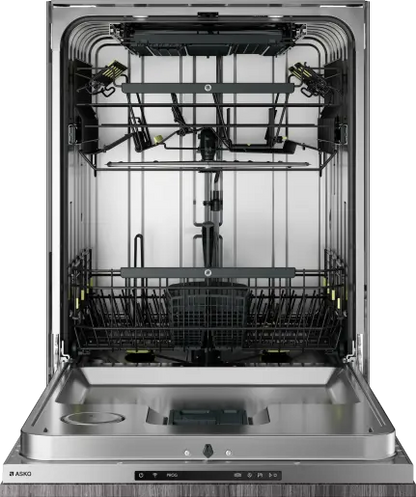

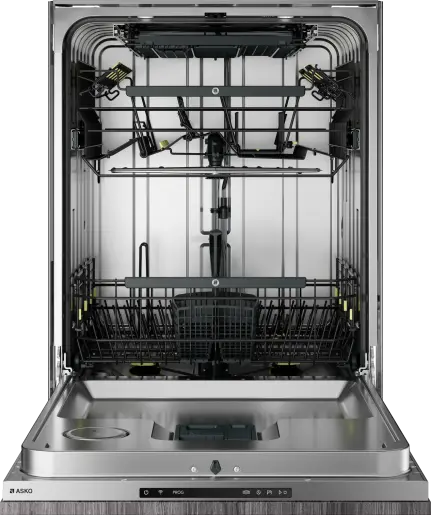

XXL Loading Capacity
The XXL interior provides generous loading space for large cookware, dishes and everyday tableware while supporting up to 16 place settings.
04
Instant Lift™
Instant Lift™ makes it easy to adjust the upper basket height, creating additional room when loading taller glasses, plates and other large items.
TECHNICAL DETAILS
Specifications
Construction & Performance
- Series
- 40 Series
- Installation type
- Fully integrated / Panel ready
- Size
- XXL
- Construction
- 8 Steel™
- Spray zones
- 9
- Noise level
- 42 dB(A)
Use & Flexibility
- Place settings
- 16
- Number of baskets
- 3
- Upper & lower baskets
- Premium steel wiring
- Top cutlery tray
- Yes
- Maximum internal load height
- 24 51/64"
- Lower-rack plate capacity
- Up to 15 3/4"
Interaction & Control
- Display
- LCD
- Status Light
- Yes
- Time remaining
- Yes
- End-cycle signal
- Yes
- Rinse-aid indicator
- Yes
- Delayed start
- Up to 24 hours
Programs & Functions
- Number of programs
- 9
- Normal
- Yes
- Intensive
- Yes
- All-in-one tablet function
- Yes
- Hidden heater
- Yes
- Steam protection
- Yes
Safety
- Aqua Safe™
- Yes
- Aqua Detect
- Yes
- Kid Safe controls
- Lockable controls
- Anti-siphon
- Integrated
Technical Data
- Normal cycle duration
- 125 min
- Annual energy consumption
- 220 kWh
- Energy per cycle
- 1 kWh/cycle
- Annual water consumption
- 647 US gal
- Water per cycle
- 3 US gal/cycle
- Standby power
- 0.5 W
- Connected load
- 1300 W
- Current
- 15 A
- Frequency
- 60 Hz
- Maximum inlet water temperature
- 140°F
Dimensions
- Width
- 23 15/16" (608 mm)
- Height
- 33 13/16" (859 mm)
- Depth
- 21 13/16" (554 mm)
- Depth including wall spacing
- 21 7/8" (555 mm)
- Maximum height
- 35 7/8" (912 mm)
- Depth with door open
- 48 7/16" (1231 mm)
- Power cord length
- 71 7/16" (1815 mm)

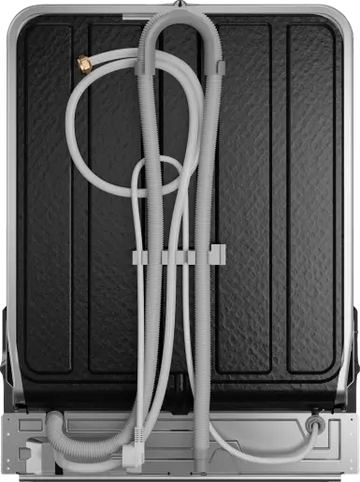

- Inlet hose length
- 64 3/16" (1630 mm)
- Outlet hose length
- 90 9/16" (2300 mm)
Installation
- Rear foot adjustment
- Front adjustable
- Door spring adjustment
- Front adjustable
- Adjustment strips
- Velcro
- Outlet hose
- Multi-fit
- Kick plate range
- 1 3/16"–3 10/16"
- Custom panel included
- No
- ADA compliant
- No
Logistics
- Model
- DFI564XXL.U
- Product code
- 740104
- EAN
- 3838782627491
- Net weight
- 91 lb
- Packaged weight
- 99 lb
- Package width
- 25 3/16" (640 mm)
- Package height
- 36 5/8" (930 mm)
- Package depth
- 27 3/8" (695 mm)
