01
Status Light™

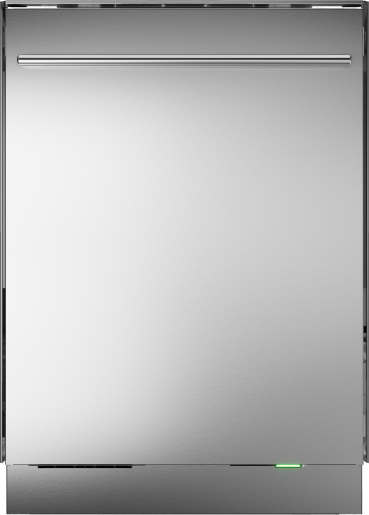

A discreet status light communicates cycle progress using color indications.

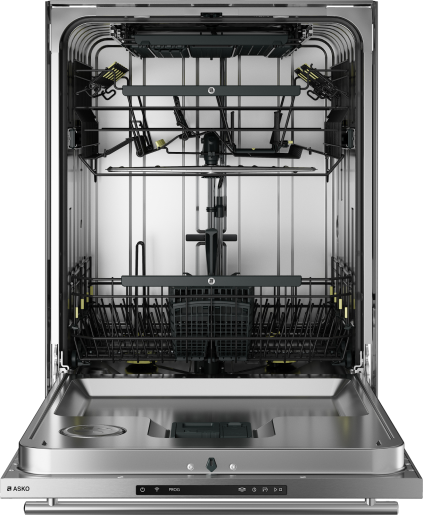

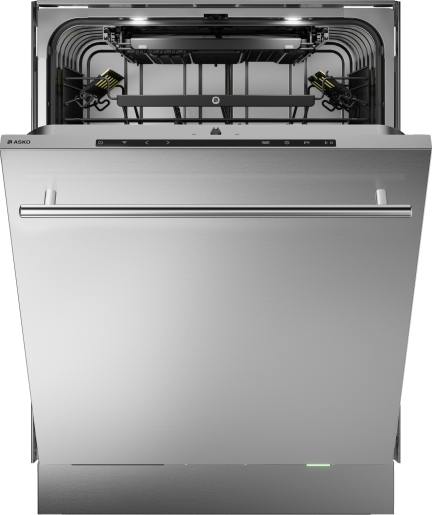

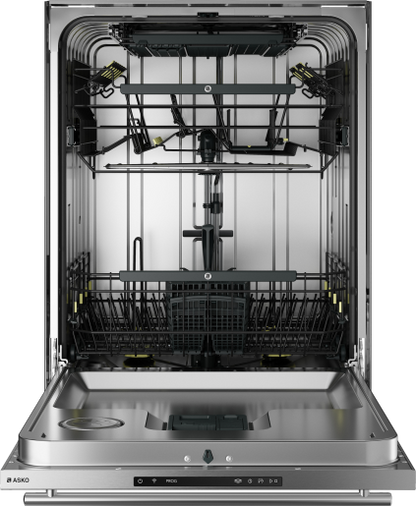

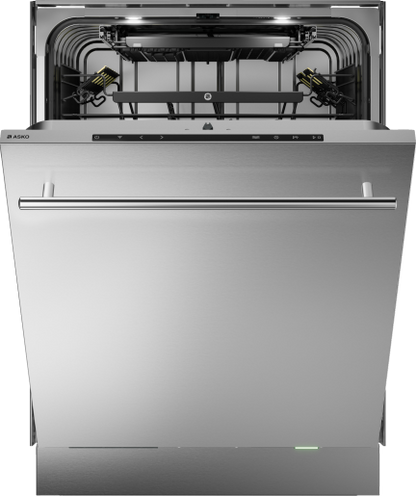

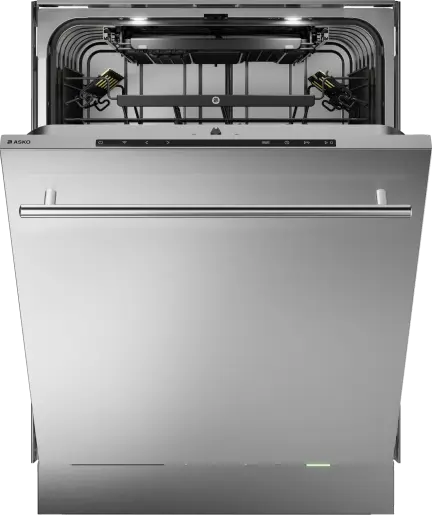

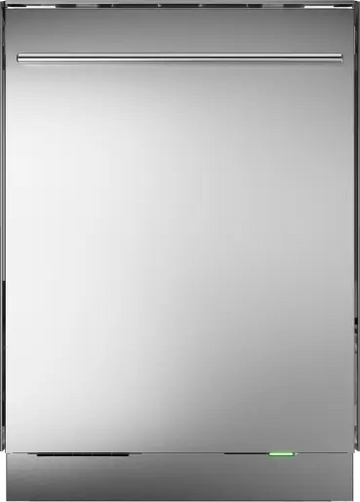

XXL Built-In Dishwasher
DBI565TXXLS
50 Series
ASKO 50 Series XXL built-in dishwasher with 16-place-setting capacity, three racks, 40 dB operation and Turbo Combi Drying™.
$2,099.00
Optional services
Select only the services you need.
DBI565TXXLS$2,099.00
Total$2,099.00
ASKO · MAIN FEATURES
02
Super Cleaning System™
ASKO's Super Cleaning System™ rinses the fine filter and selected interior surfaces before the main wash to help deliver consistently clean results.
03
8 Steel™
Eight important dishwasher components are made from high-quality steel rather than plastic for long-lasting durability.
04
Connected
ConnectLife connectivity provides access to compatible dishwasher controls and information from a connected device.
TECHNICAL DETAILS
Specifications
Construction and performance
- Series
- 50 Series
- Installation
- Built-in
- Size
- XXL
- 8 Steel™
- Yes
- Super Cleaning System™
- Yes
- Automatic water softener
- No
- Spray arms
- 3
- Spray zones
- 9
- Noise level
- 40 dB(A)
Use and flexibility
- Place settings
- 16
- Number of racks
- 3
- Top tray
- Height adjustable / telescopic rails / removable
- Upper rack
- Exclusive / folding tines / wine shelves / Light Lock™
- Lower rack
- Exclusive / folding pin rows / vase-bottle holder / cutlery basket
- Interior light
- 2 LED lights
- Automatic dosing system
- No
Interaction and control
- Display
- LCD display
- Status Light™
- Yes
- Remaining time indication
- Yes
- Wash end indication
- Sound and light
- Rinse-aid indication
- Notification in display
- Connectivity
- ConnectLife / Wi-Fi
Functions, programs and modes
- Programs
- 9
- Delayed start
- Up to 24 hours
- Quick Pro
- Yes
- Sensor controlled door opening
- Yes
- Night mode
- Yes
- Speed mode
- Yes
- Green mode
- Yes
- Super Rinse™
- Yes
Design and integration
- Rear foot adjustment
- Front adjustable
- Installation connection

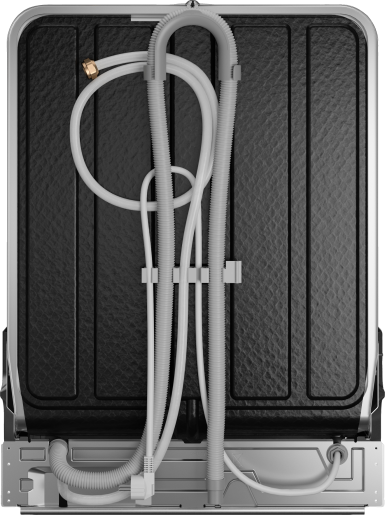

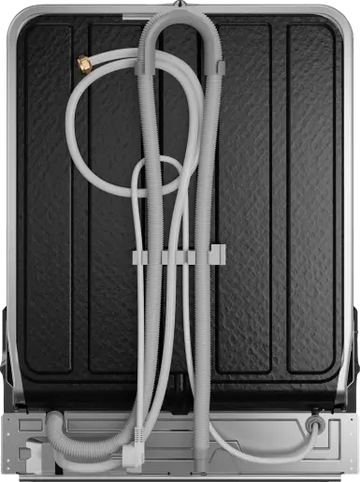

- Multi-fit outlet hose / integrated anti-siphon
- Sliding door
- No
- Elevated installation
- Yes
- Minimum niche width
- 24 in
- Minimum niche height
- 34 1/4 in
- Depth incl. wall spacing
- 21 7/8 in
- Maximum height adjustment
- 2 1/16 in
Safety and maintenance
- Aqua Safe™ system
- Yes
- Aqua Detect™
- Yes
- Aqua Level™ Sensor
- Yes
- Leak detection
- Yes
- Child safety
- Kid Safe™ lockable controls
- Rinse-aid indication
- Notification in display
Technical data
- Water connection
- Hot or cold
- Maximum inlet water temperature
- 140°F
- Noise level
- 40 dB(A)
- Standard program duration
- 125 min
- Annual energy consumption
- 220 kWh
- Energy normal program
- 1 kWh
- Annual water consumption
- 647.5 gal
- Water per cycle
- 3 gal
- Standby power
- 0.5 W
- Connected load
- 1300 W
- Voltage
- 120 V
- Fuse
- 15 A
- Frequency
- 60 Hz
Dimensions
- Width
- 23 15/16 in
- Height
- 34 5/16 in
- Depth
- 21 13/16 in
- Maximum product height
- 36 3/8 in
- Depth with door open
- 48 7/16 in
- Power cord length
- 71 7/16 in
- Inlet hose length
- 64 3/16 in
- Outlet hose length
- 90 9/16 in
Logistic information
- Product code
- 740102
- EAN
- 3838782628443
- Packaging width
- 25 3/16 in
- Packaging height
- 36 5/8 in
- Packaging depth
- 26 3/4 in
- Gross weight
- 103.6 lb
